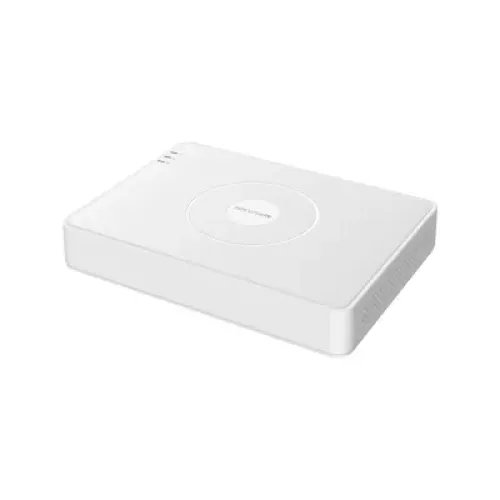

The Hikvision DS‑7116HGHI‑M1 is a compact 16-channel Turbo Analog DVR (HD-TVI, AHD, CVI, CVBS) that includes AcuSense Motion Detection 2.0, capable of distinguishing human and vehicle events to greatly reduce false alarms

Key Features:

• Supports 16 analog video inputs; plus up to 2 IP camera channels (max. 5 MP each).

• Built-in deep learning-based human/vehicle classification for analog channels, enabling smart search and filtering.

• Compatible with HD-TVI/AHD/CVI/CVBS input formats, plus partial IP camera support; encoded at up to 1080p Lite @ 15 fps per analog channel.

• Video compression: H.265 Pro+, H.265, H.264+ for efficient storage.

• Output via HDMI and VGA simultaneously, up to 1080p resolution display.

• Audio input/output: 1-ch RCA audio via coaxial and 1-ch RCA audio output. Two-way audio supported.

• Playback: simultaneous 16-channel playback. Supports smart search by object type.

• Network features: RJ45 (10/100 Mbps), Hik‑Connect, DDNS, ONVIF, up to 128 remote connections.

• Storage: 1× SATA port, supporting up to 10 TB per disk, 2× USB 2.0 ports for backup.

• Power: 12 VDC, 1.6 A, with typical power consumption ≤ 7 W (no HDD).

• Physical footprint: 285 × 210 × 45 mm, ≤ 1.8 kg.
